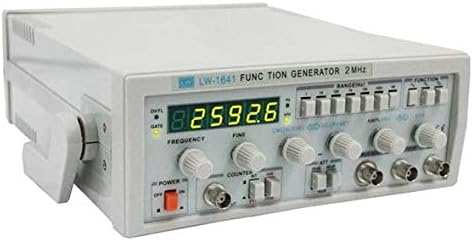

Signal Function Generator LW-1641 Frequency Range 0.1Hz-2MHz Sine, Triangle, Square, Ramp ±Pulse 0.5dB

MeterTo MeterTo mainly offers instruments and tools. Please confirm the product is offered by our store MeterTo when purchasing, otherwise we can't ensure the quality and after-sale service. Specification Model: LW1641 Frequency: 0.1Hz-2MHz Output waveform: Sine, triangle,square, positive and negative pulse, positive and negative ramp Output impedance: 50ohm±10% Amplitude: Not less than 50Vp-p (open circuit) DC voltage: 0~±10V continuously adjustable Symmetry range: 90:10--10:90 Rising edge of square: ＜100ns Sine characteristic Distortion: Less than 1% at 10H-100KHz Frequency response 0.1Hz~100MHz: ≤± 0.5dB 100 KHz-5MHz ≤±1dB (LW-1642) 100KHz~2MHz: ≤±1dB (LW1641) TTL/CMOS output Level: TTL low level less than 0.4V in pulse wave, high level less than 3.5V,CMOS low less tan 0.5V in pulse wave, high level 5V--14V continuously variable. Rising time: Less than 100ns VCF input Output voltage: -5V~0V±10 Max.volt-controlled: 1000:1 Input signal: DC-1KHz Frequency counter Measuring range: 1Hz~10MHz≥10Vp-p Input impedance: Not less than 1Mohm/20F Sensitivity: 100mVrms Input attenuation: 20dB Accuracy Line power: Less than 0.003%±1 digit 220V/110V±10% 50Hz/60Hz Dimension: 270*225*90mm Weight: N.W. About 2.5Kg

• Frequency of the mode: 0.1Hz---2MHz;
• Output waveform: Sine, Triangle, Square, ramp ±Pulse;
• TTL/CMOS and OUTPUT synchronous output;
• Less than 1% distortion at 10Hz-- 100 KHz;
• Less than 0.5dB frequency response at 0.1Hz---100 KHz.
